Description

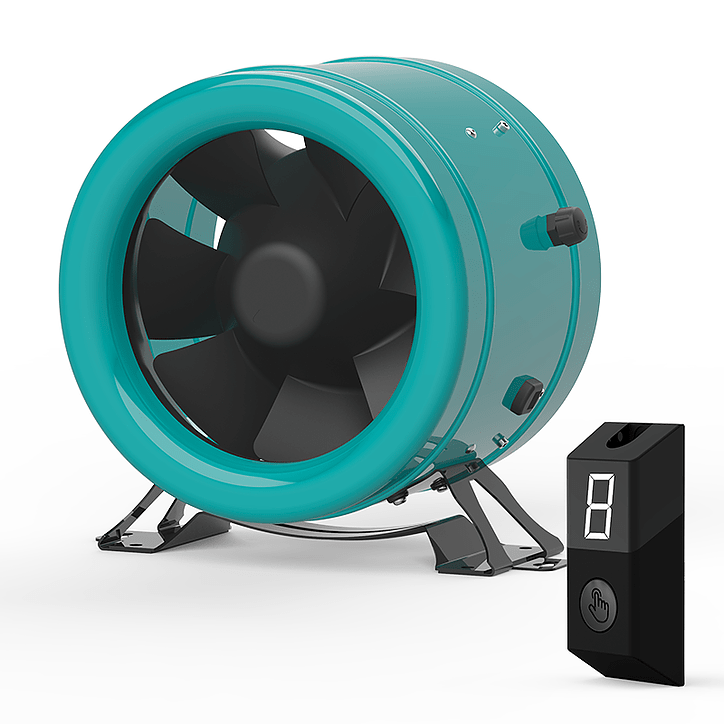

SIGILVENTUS EC MIXFLOW INLINE FAN is an extremely low profile inline fan with jet-engine blades design and metal housing. Combined with an EC motor for no-humming, no vibration, smooth operation and the most energy efficient performance.
It is an outstanding fan in the market because of its high efficiency, resulting from a built-in multiphase brushless DC motor design, sending this compact inline fan to high speeds and a high static pressure rating as well as maintaining a lower level of power consumption.
Included in the box is an 8 speeds controller for maximum flexibility.
We also offer optional wireless controller or smart controller which are sold separately.
| Fan Size | 6 inch | 150mm |
| Rated Voltage | 110V~120V | 220V~240V |
| Max. Power C. | 40W |
| Frequency | 50Hz|60Hz |
| Max. Speed | 5000RPM |
| Max. Airflow | 350CFM | 594M3H |
| Static Pressure | 51mmH2O | 500Pa |
| MAX. Noise | 60dBA[1M-INLET] |
| Signal Outputs | PWM, 0-10V, POT, FG |
| Housing Material | Steel |
| Bearing System | NMB or NSK Ball |
| Impeller Design | Mixed Flow |
| Motor Type | EC Motor |
| Net Weight | 1.6kgs |
| IP Rating | IPX4 |
| Bracket Type | Detachable |
| Certifications | ETL, CE, SAA |
| Fan Size | 8" | 200mm |
| Rated Voltage | 110V~120V | 220V~240V |
| Max. Power C. | 75W |
| Frequency | 50Hz|60Hz |
| Max. Speed | 3800RPM |
| Max. Airflow | 710CFM | 1205Mli'fangH |
| Static Pressure | 53mmH²O | 520Pa |
| Max. Noise | 61.6dBA[1M-INLET] |
| Signal Outputs | PWM, 0-10V, POT, FG |
| Housing Material | Steel |
| Bearing System | NMB or NSK Ball |
| Impeller Design | Mixed Flow |
| Motor Type | EC Motor |
| Net Weight | 2.5kgs |
| IP Rating | IPX4 |
| Bracket Type | Detachable |
| Certifications |
ETL, CE, SAA |
| Fan Size | 10" | 250mm |
| Rated Voltage | 110V~120V | 220V~240V |
| Max. Power C. | 150W |
| Frequency | 50Hz|60Hz |
| Max. Speed | 3200RPM |
| Max. Airflow | 1065CFM | 1808M³H |
| Static Pressure | 52mmH²O | 510Pa |
| Max. Noise | 65dBA [1M-INLET] |
| Signal Outputs | PWM, 0-10V, POT, FG |
| Housing Material | Steel |
| Bearing System | NMB or NSK Ball |
| Impeller Design | Mixed Flow |
| Motor Type | EC Motor |
| Net Weight | 3.0kgs |
| IP Rating | IPX4 |
| Bracket Type | Detachable |
| Certifications | ETL, CE, SAA, ERP, HVI |
